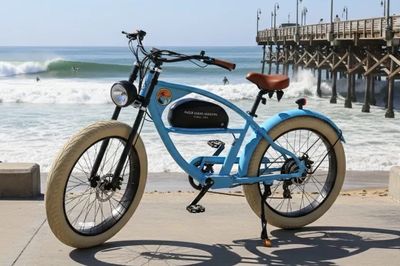

Manhattan Surf Specs

Frame 26"x4.0"x300mm, Alloy frame ,with "Gas Tank" type battery case fitted on the frame tube Fork 26"x4.0, alloy crown and steel legs
Handlebar Alloy cruiser type handlebar, alloy stem, sand black
Brake Set F/R mechanical disc brake, TEKTRO,MD-M280F/R, with electric brake levers / 180MM Rotor
Crank Set 36TX170MM,alloy crank, steel chainring,PROWHEEL
Chain KMC, Z7
Gear Set SHIMANO Tourney 7 speed,RD-TY300/SL-TX50/MF-TZ500
F/R Hub F: alloy hub R: hub motor
Rim 26''x4.0x14Gx36H,alloy single wall, black
Spokes #304, 13G stainless steel spokes, with brass nipple black
Tire 26''x4.0, cream color,60TPI
Saddle vinyl top cover, padded with PU, brown
Seat Post Alloy, with clamp, with quick release,black
Pedals Alloy , 9/16" with balls and reflectors, black
Accessories With F/R steel painted mudguards; with steel F type chaincover, with alloy kickstand, with bell, with F/R light powered by main bike battery, with F/R wheel reflectors
Motor Brushless 48V/750W rear hub motor; 48V 20AH Lithium battery , charger with plug
Motor System PAS/throttle, speed sensor, center color LCD panel
Decal Water sticker
Packaging SKD 85% assembly, one set per seaworthy carton
Distance Up to 49 Miles w/ Pedal Assist
Charge Time 4-6 Hours
Max Speed 28 MPH (Subject to riding conditions and settings)
Bike Weight 83 lbs
Gross Carton 98.3 lbs
Carton Dimension 70.8x32x13
