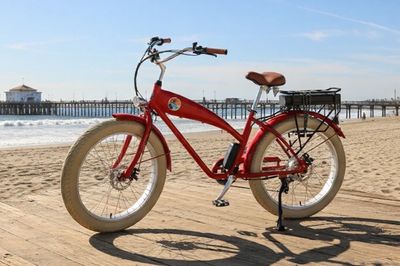

Redondo Red Specs

  • Frame  26"x4.0x457MM,   Alloy 6061 TIG welded
  • Fork Steel, rigid,   Hiten, TIG welded
  • Handlebar Alloy cruiser type  handlebar, alloy stem, silver
  • Brake Set  F/R mechanical disc   brake, TEKTRO,MD-M280F/R, with electric brake levers/ 180MM Rotor
  • Crank Set  42TX170MM,alloy   crank, steel chainring, PROWHEEL PRA-115
  • Chain KMC,Z7
  • Gear Set SHIMANO Tourney 7s,   SL-TX50-7R/RD-TX55GD
  • F/R Hub F: alloy hub, R: hub   motor
  • Rim 26''x4.0x14Gx36H,alloy   single wall, black
  • Spokes #304, 13G stainless   steel spokes, with brass nipple black
  • Tire  26''x4.0, cream   color,60TPI
  • Saddle Cruiser saddle, vinyl   cover, with double CP rings, brown
  • Seat Post  Alloy silver, with   safety line, with alloy quick release, silver
  • Pedals  Alloy , 9/16"   with balls and reflectors
  • Accessories With F/R steel   mudguards, rear steel carrier for battery, alloy kickstand, with steel F type   chain cover, with bell, with F/R battery lights
  • Motor Brushless 48V/750W   rear hub motor; 48V 17.5AH Lithium battery , charger with plug
  • Motor System PAS/throttle, speed   sensor, center color LCD panel
  • Decal Water sticker
  • Packaging  SKD 85% assembly, one   set per seaworthy carton
  • Distance Up to 43 Miles w/   Pedal Assist
  • Charge Time 4-6 Hours
  • Max Speed 28MPH (Subject to   riding conditions and settings)
  • Bike Weight 78lbs
  • Gross   Carton  94lbs
  • Carton   Dimension 65x39x13
